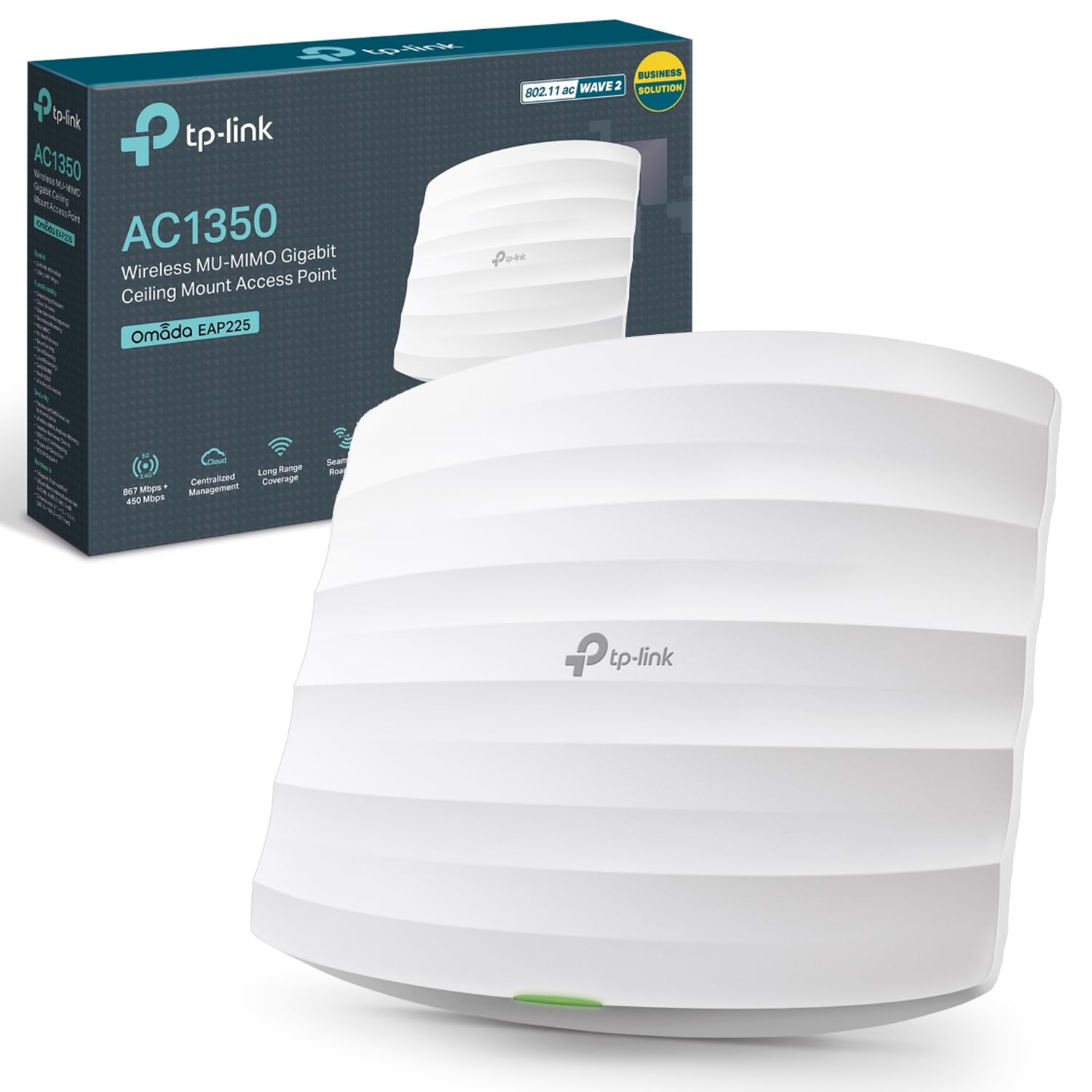

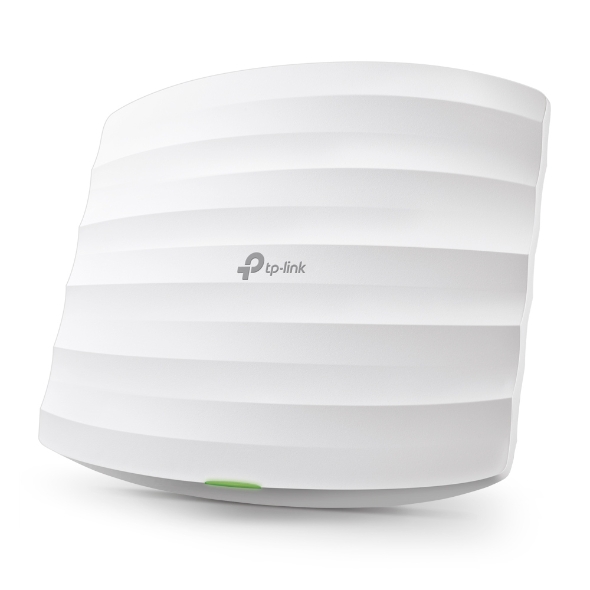

TP-LINK EAP 225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Name: TP-LINK EAP 225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Brand: TP-LINK
SKU: 001
Availability: InStock

Designed for seamless coverage, it delivers dual-band speeds up to 1350 Mbps with MU-MIMO technology for efficient multi-user performance. The sleek, ceiling-mount design makes it perfect for offices, cafés, and shops, while PoE support ensures easy installation. Managed via Omada SDN for centralized control, the EAP225 is a reliable solution for high-performance, scalable wireless networks.

SKU: 001

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹9,999.00.Current price is: ₹4,550.00.

50 in stock

Add to compare

Add to wishlist

15 People watching this product now!

Pick up from the Techtub store Bangalore

To pick up today

Free

Within Bangalore

Porter/Dunzo/Rapido/Wefast

Same Day

Free

Professional Courier delivery

Professional Courier will deliver to the specified address

1-4 Days

Free

Direct Company warranty

More details

Seal pack return wiithin 3days post delivery-free

More details

Payment Methods:

Description

HARDWARE FEATURES
Interface	Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Physical Security Lock	Yes
Button	Reset
Power Supply	• 802.3af/at PoE • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption	EU: 9.7W US: 12.1W
Dimensions ( W x D x H )	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna	3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi
Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage	115㎡(1250 ft²)^§
Concurrent Clients	220+^**
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps
Wireless Functions	• Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support
Transmission Power	• CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Cloud Access	Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

OTHERS
Certification	CE, FCC, RoHS

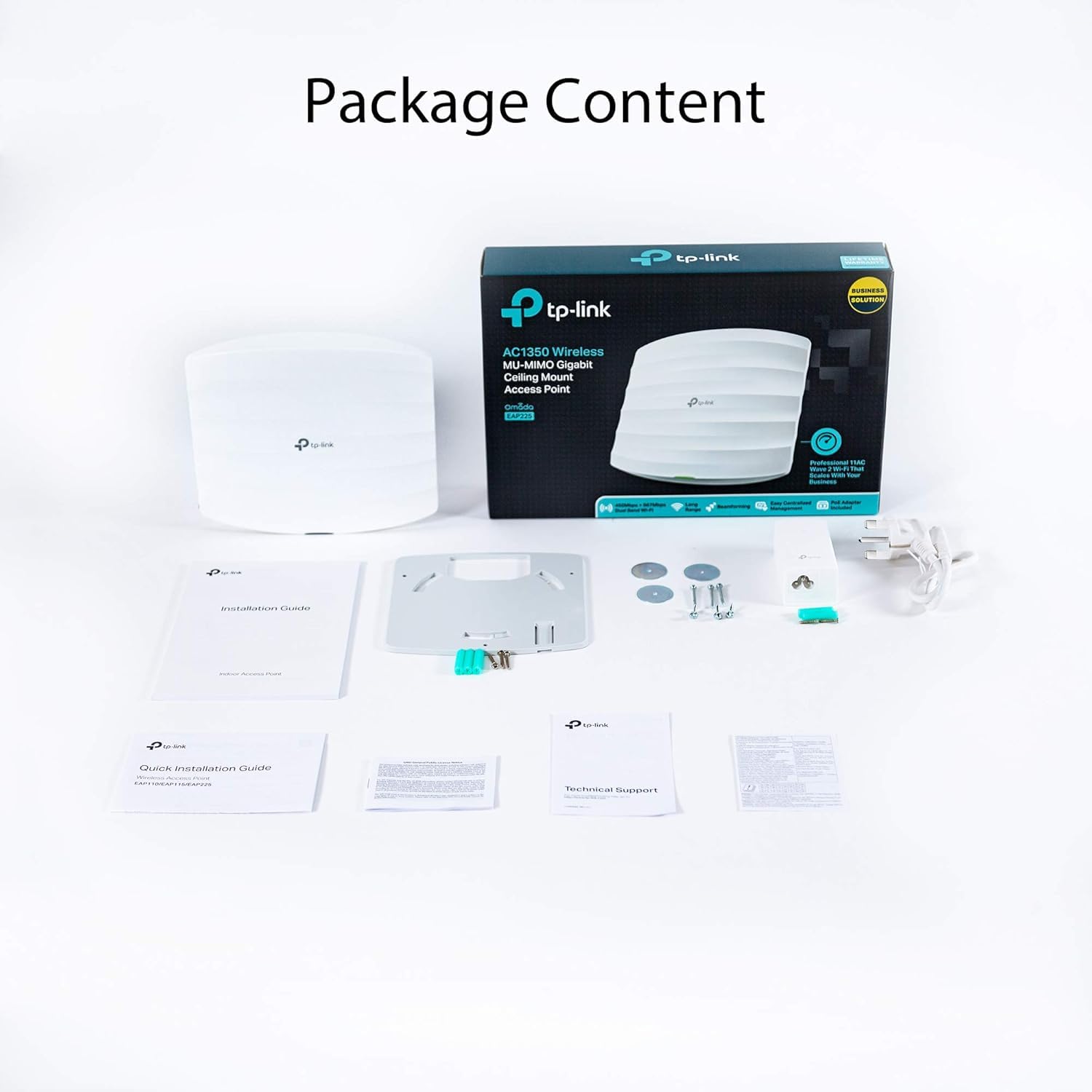

Package Content	• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
